Fox Performance Series 2.5 IFP HTO Shock, Rear (2-3in Lift) JT
Couldn't load pickup availability
Vehicle Fitment
Product Description

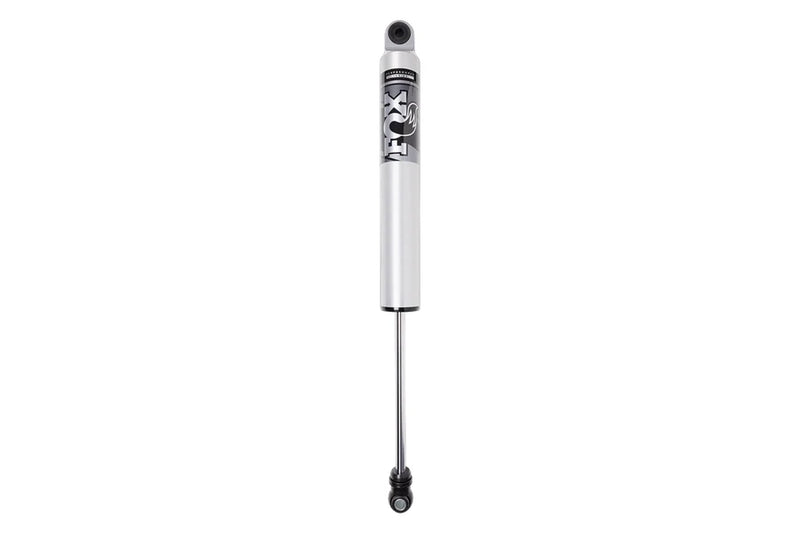

FOX 2.5 Performance Series HTO Coil-Over is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO Coil-overs to increase damping capacity and ride in comfort with position-sensitive rebound control.
Features and Benefits
- 2.5” Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8” hard chrome shaft
- Internal floating piston (IFP)
- Hydraulic Top Out (HTO) piston
- Corrosion resistant
- Application specific tune
- Fully rebuildable and re-tunable
Specifications
- Extended: 29.720
- Compressed: 19.040
- Travel: 10.690
- Top Mount: Eyelet
- Bottom Mount: Eyelet
Frequently Asked Questions (FAQs)
Q: Is installation straightforward?
A: Yes, these shocks bolt on using factory mounting points without modifications.
Q: What are the benefits of Fox Performance Series 2.5 IFP HTO shocks?
A: These shocks provide superior damping, improved heat dissipation, and consistent performance during demanding off-road and daily driving.
