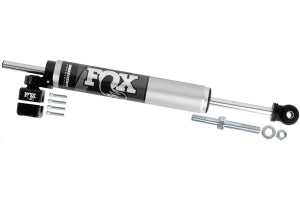

Fox 2.0 Performance Series TS Steering Stabilizer - 1 5/8in Tie Rod JK

With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.

Derived from the FOX's original ATS stabilizer, the Performance Series 2.0 Stabilizer TS utilizes a Through Shaft (TS) architecture that eliminates shaft fluid displacement throughout the stabilizer's entire travel in both directions. By eliminating fluid displacement, the TS design delivers neutral and consistent damping of unwanted steering feedback. The result is unrivaled steering control at an unbelievable price point in a single, bolt-on stabilizer.

The Performance Series 2.0 Stabilizer TS includes application specific mounting hardware and is available in multiple clamp sizes for stock or aftermarket heavy duty tie-rods.

Shock Body Diameter: 2”

Shock Body Material: 6061-T6 Aluminum

Shock Body Finish: Clear Hard Anodized

Shock Component Material: 6061-T6 Aluminum

Shock Component Finish: Black Hard Anodized

Shaft Material: Heat-Treated Steel Alloy

Shaft Finish: Hard Chrome Plating

Piston: Race-Developed High-Flow Design

Redundant Valve Seals: Main Seal, Wiper Seal, and Scraper Seal

Shock Oil: JM92 Advanced Suspension Fluid

Shock Gas: High-Pressure Nitrogen

Bushing Material: Black Nitrile Rubber

Charge: Neutrally Charged

Extended Length: 23.27” (591.06mm)

Collapsed Length: 15.08” (383.03mm)

Travel: 8.19” (208.03mm)



Frequently Asked Questions (FAQs)



Q: Is the Fox 2.0 TS Steering Stabilizer adjustable?

A: No, this model is non-adjustable and optimized for Jeep JK steering characteristics.

Q: Will this stabilizer improve off-road performance?

A: Yes, it reduces harsh steering feedback and improves control on rough terrain and trails.

Q: How easy is installation of the Fox 2.0 TS Steering Stabilizer?

A: It installs directly onto the tie rod and uses a new track bar bolt for easy installation.
