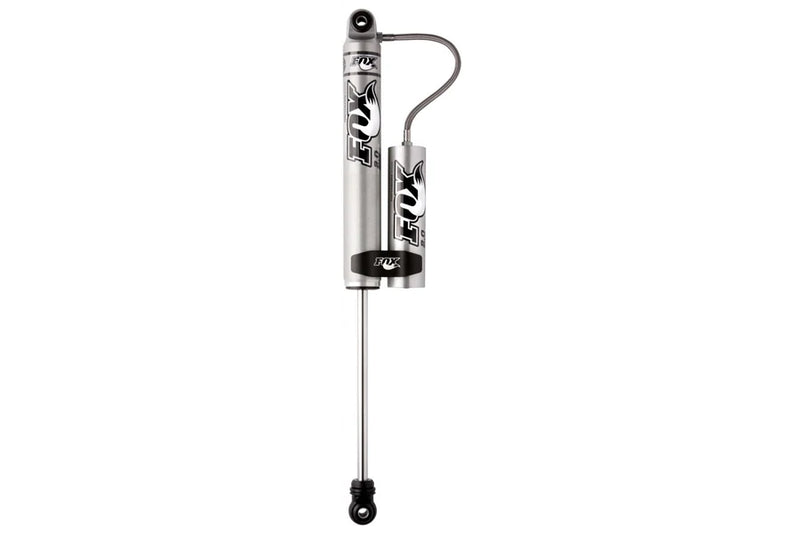

Fox 2.0 Performance Series Smooth Body Reservoir Shock Rear - 6.5-8in Lift JK

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Body      2.0" Impact extruded 6061-T6 aluminum will resist rust over time

Body Plating       Clear-anodized for a durable finish

Reservoir             2.0" Smooth bore 6061-T6 Aluminum is hard anodized

Components      Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft     5/8" hard chrome plated heat-treated alloy steel

Piston   Race-developed high-flow piston design

Valving Application specific valving to maximize performance

Seals      Redundant sealing pack system main seal, wiper seal, scraper seal

Oil           JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings              Quiet nitrile rubber allows for increased suspension articulation

Extended            33.950

Compressed      19.850

Travel    14.100Top Mount         Bar Pin

Bottom Mount  Eyelet

Fitment notes - Includes Billet Reservoir Clamp

Specifications
