Fox 2.0 Performance Series Smooth Body Reservoir Shock Rear - 3.5-4 Lift JT
Couldn't load pickup availability
Vehicle Fitment
Product Description

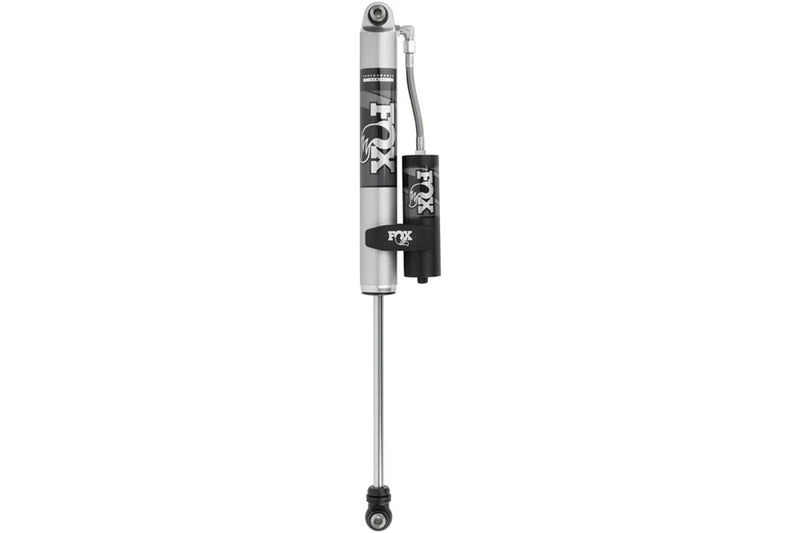

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
- Body 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
- Body Plating Clear-anodized for a durable finish
- Reservoir 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft 5/8" hard chrome plated heat-treated alloy steel
- Piston Race-developed high-flow piston design
- Valving Application specific valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal
- Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
- Bushings Quiet nitrile rubber allows for increased suspension articulation
- Extended 31.020
- Compressed 18.400
- Travel 12.620
- Top Mount Eyelet
- Bottom Mount Eyelet
- Fitment notes - Includes Billet Reservoir Clamp
Frequently Asked Questions (FAQs)
Q: What are the benefits of the external reservoir design?
A: The external reservoir increases oil and nitrogen capacity, which improves heat dissipation, reduces shock fade, and delivers consistent damping during aggressive off-road use.
Q: Is this a direct bolt-on replacement?
A: Yes, this shock is designed as a direct bolt-on upgrade for lifted JT Gladiators and uses the factory mounting points.
Q: Are the shocks adjustable?
A: No, these shocks are not externally adjustable. They are pre-valved by Fox for optimal performance with 3.5–4in of lift on the JT.
Q: Do these shocks improve on-road ride comfort?
A: Yes, the internal valving and reservoir design provide better ride quality both on and off-road, especially over uneven pavement and washboard surfaces.
