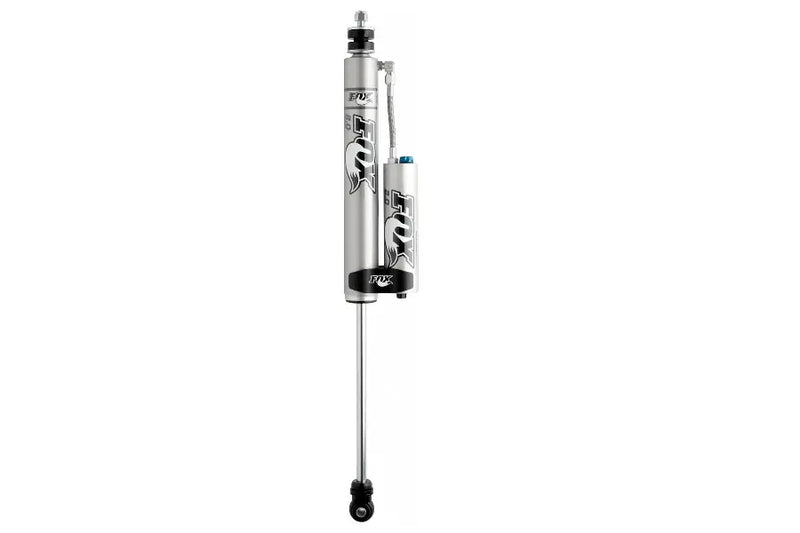

FOX 2.0 Performance Series Smooth Body Reservoir Front Shock - Adjustable JK

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Features

Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time

Body Plating: Clear-anodized for a durable finish

Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized

Components: Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft: 5/8" hard chrome plated heat-treated alloy steel

Piston: Race-developed high-flow piston design

Valving: Application specific valving to maximize performance

Seals: Redundant sealing pack system main seal, wiper seal, scraper seal

Bushings: Quiet nitrile rubber allows for increased suspension articulation

Adjuster Type: LSC - Low Speed Compression

Extended: 25.870Compressed: 15.750Travel: 10.120Top Mount: Stem TopBottom Mount: Eyelet

Fitment notes: Includes Billet Reservoir Clamp

Specifications
