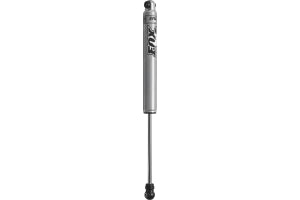

Fox 2.0 Performance Series Smooth Body IFP Shock Rear - 2.5-3.5in Lift TJ

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

• Body        2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time


• Body Plating         Clear-anodized for a durable finish


• Reservoir               Internal IFP mono-tube reservoir design


• Components        Black-anodized, CNC-machined 6061-T6 billet aluminum


• Shaft       5/8" hard chrome plated heat-treated alloy steel


• Piston     Race-developed high-flow piston design


• Valving   Application specific valving to maximize performance


• Seals        Redundant sealing pack system main seal, wiper seal, scraper seal


• Oil             JM92 Advanced Suspension Fluid for improved performance at variable temperatures


• Bushings   Quiet nitrile rubber allows for increased suspension articulation


• Extended              22.720


• Compressed        14.6


• Travel      8.120


• Top Mount           Bar Pin


• Bottom Mount    Eyelet


  Specifications







  Brand: Fox Racing Shocks






  Collapsed Length: 14.55in






  Color: Silver






  Extended Length: 22.65in






  Install Method: Bolt On






  Lift: 2.5-3.5in






  Location: Rear






  Material: 6061-T6 Aluminum






  Qty: 1






  Travel Length: 8.10in









  Mfgr. Warranty: 1 Year Warranty






  Condition: New Product






  Return Policy: Standard
