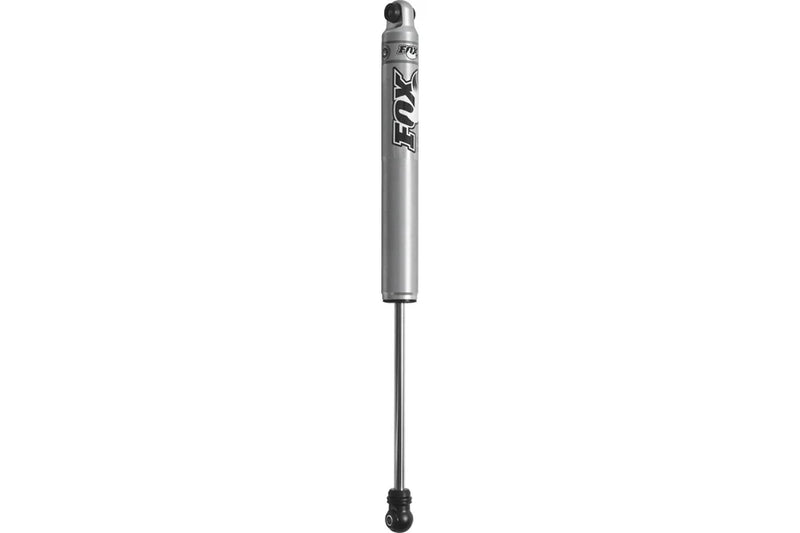

Fox 2.0 Performance Series Smooth Body IFP Shock Front - 0-2in Lift TJ

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Body      2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating       Clear-anodized for a durable finish

Reservoir             Internal IFP mono-tube reservoir design

Components      Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft     5/8" hard chrome plated heat-treated alloy steel

Piston   Race-developed high-flow piston design

Valving Application specific valving to maximize performance

Seals      Redundant sealing pack system main seal, wiper seal, scraper seal

Oil           JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings              Quiet nitrile rubber allows for increased suspension articulation

Extended            20.850

Compressed      13.250

Travel    7.600

Top Mount         Stem Top

Bottom Mount  Bar Pin



Frequently Asked Questions (FAQs)



Q: Is this a direct bolt-on replacement?

A: Yes, it installs directly using factory mounting points with no modifications required.

Q: Will this shock improve on-road ride quality?

A: Yes, Fox 2.0 shocks are valved to improve comfort, handling, and control both on the pavement and on rough roads.

Q: What type of driving is this shock best suited for?

A: It’s ideal for daily driving, weekend trail runs, overlanding, and rock crawling—offering improved control over stock.
