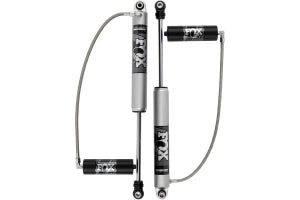

Fox 2.0 Performance Series Remote Reservoir Shocks, Front - 2-3in Lift JL

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Body - 2.0" Impact extruded 6061-T6 aluminum will resist rust over time

Body Plating - Clear-anodized for a durable finish

Reservoir - 2.0" Smooth bore 6061-T6 Aluminum is hard anodized

Components - Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft - 5/8" hard chrome plated heat-treated alloy steel

Piston - Race-developed high-flow piston design

Valving         - Application specific valving to maximize performance

Seals - Redundant sealing pack system main seal, wiper seal, scraper seal

Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings - Quiet nitrile rubber allows for increased suspension articulation

Extended - 26.593Compressed - 16.403Travel - 10.190Top Mount - Eyelet

Bottom Mount - Eyelet

Fitment notes - Includes Billet Reservoir Clamp



Frequently Asked Questions (FAQs)   Q: What is the advantage of the remote reservoir design?

A: The remote reservoir increases oil capacity and improves heat dissipation, which helps reduce shock fade during extended or aggressive off-road driving.

Q: Can I use these shocks for daily driving and off-roading?

A: Absolutely. These shocks deliver a comfortable ride on the street while offering superior damping control and performance off-road.

Q: Are these shocks adjustable?

A: No, the Fox 2.0 Performance Series Remote Reservoir shocks are not externally adjustable, but they are precision-valved from the factory for optimal performance with a 2–3 inch lift.
