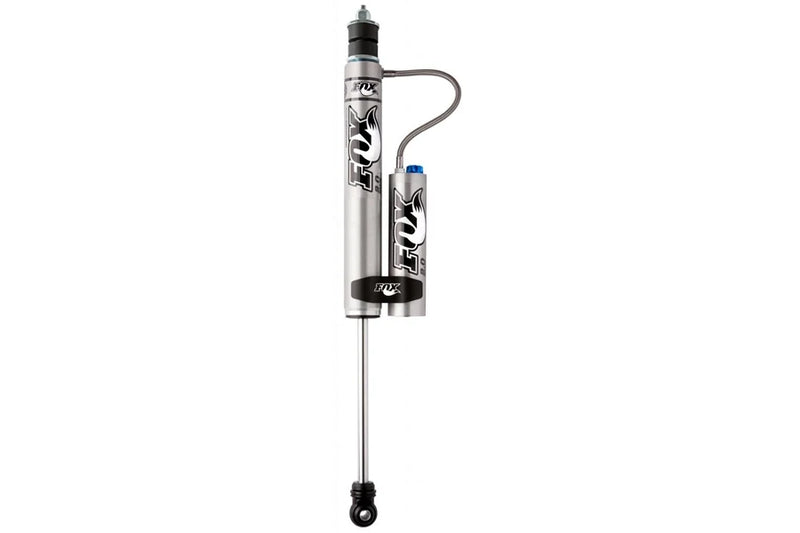

Fox 2.0 Performance Series Adjustable Smooth Body Reservoir Shock Front - 5-6in Lift TJ

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Body        2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating         Clear-anodized for a durable finish

Reservoir               Internal IFP mono-tube reservoir design

Components        Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft       5/8" hard chrome plated heat-treated alloy steel

Piston     Race-developed high-flow piston design

Valving   Application specific valving to maximize performance

Seals        Redundant sealing pack system main seal, wiper seal, scraper seal

Oil             JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings    Quiet nitrile rubber allows for increased suspension articulation

Adjuster Type      LSC - Low Speed Compression

Extended              26.800

Compressed        16.200

Travel      10.600

Top Mount           Stem Top

Bottom Mount    Bar Pin

Fitment notes - Includes Billet Reservoir Clamp
