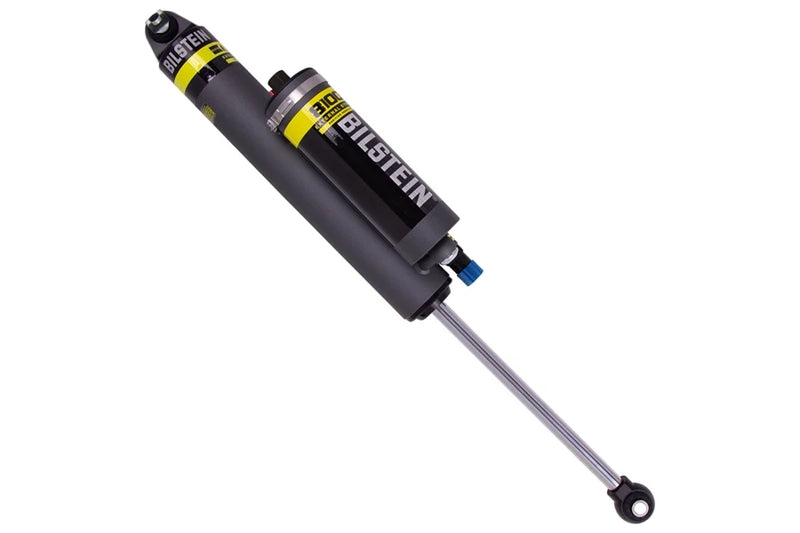

Bilstein Suspension Shock Absorber B8 8100 (Bypass) - Rear Left - JK

Part # 25-291322

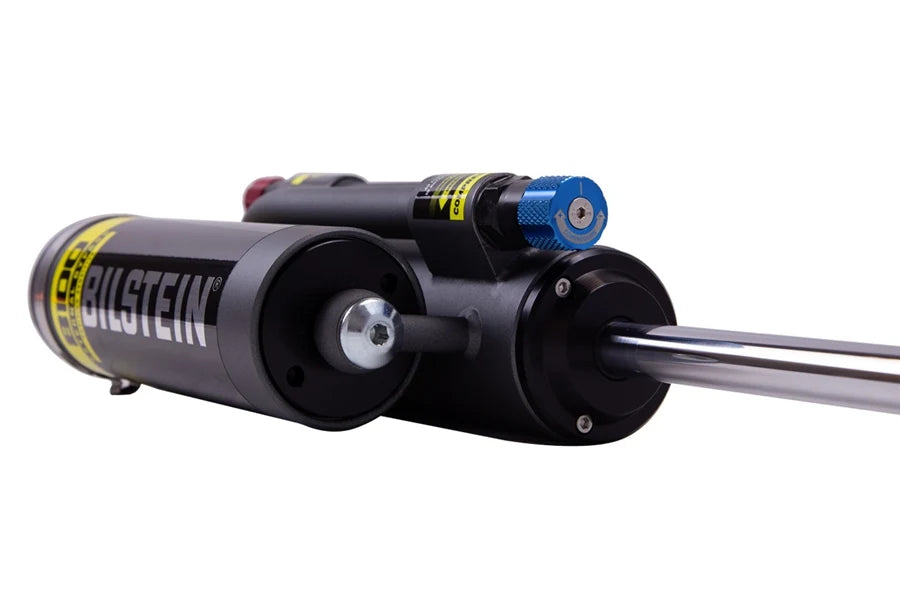

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Specifications:

• Collapsed Length (IN)17.17


• Extended Length (IN)27.83


• Collapsed Length (MM)436.0


• Extended Length (MM)707.0


• Finish EVO Grey


• Reservoir Yes


• Body Design Bypass Body (Non-Coilover)


• Body Diameter60mm


• Spring Seat Included: No


• Adjustable Damping Double Adjustable Compression and Rebound with Click Adjuster Knobs


•


  Specifications







  Brand: Bilstein






  Collapsed Length: 17.17in






  Color: Black






  Extended Length: 27.83in






  Install Method: Bolt On






  Lift: 3.5-5in






  Location: Rear






  Qty: 1









  Mfgr. Warranty: 2 Year Limited






  Condition: New Product






  Return Policy: Standard
